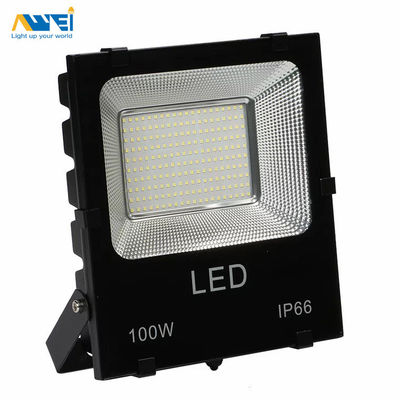

Tempered Glass Lens Outdoor LED Flood Lights 100 Watt IP65 Die Casting Aluminum

  • Tempered Glass Lens Outdoor LED Flood Lights 100 Watt IP65 Die Casting Aluminum
  • Tempered Glass Lens Outdoor LED Flood Lights 100 Watt IP65 Die Casting Aluminum
  • Tempered Glass Lens Outdoor LED Flood Lights 100 Watt IP65 Die Casting Aluminum
Place of Origin Made in China
Brand Name A-wei lighting
Certification CE, RoHS, ETL, DCL,SAA
Model Number AW-FL243
Minimum Order Quantity 100
Price Negotiable
Packaging Details Carton box with foam 4PCS/CTN
Delivery Time 5-7 working days for sample,10-15 working days for mass production orders
Payment Terms By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C
Supply Ability 7000PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Flood Led Light AW-FL243 Material Die-casting Aluminum
Ip Rating IP65 Power 50W 100W 150W 200W 300W
Working Life >50000hrs Color Temperature(cct) 3000-5500K
Input Voltage AC100-240V Light Source LED
High Light

industrial led flood lights

,

led security flood light

,

Die Casting Aluminum LED Flood Lights
Leave a Message
Product Description



Ip65 Outdoor LED Flood Lights 50W - 300W Outdoor flood lights led fixtures Led Floodlight Outdoor





Description:



LED Floodlight :50W -300W

Light Source: LED

Item Type: Flood Lights

LED Light Source:

Input Voltage(V): AC100-240V

Lamp Power(W): 100w

Lamp Luminous Flux(lm): 13000

Lamp Luminous Efficiency(lm/w): 130

CRI (Ra>): 70

Color Temperature(CCT): 3000~3500K; 3500~4000K; 4000~4500K; 4500~5000K; 5000~5500K

Beam Angle(°): 110

Working Temperature(℃): -40 - 60

Working Lifetime(Hour): 50000

Lamp Body Material: Dia Casting Aluminum

IP Rating: IP65

Certification: CCC, CE, CQC, EMC, LVD, RoHS

Place of Origin: Jiangsu , China (Mainland)

Warranty: 3years

LED chip size: SMD 3030

Chip efficacy: 150lm/w

Power avaliable: 10w 20w 30w 50w 70w 100w 150w 200w

Frequency: 50HZ/60HZ

PF: PF≥0.98/115VAC; PF≥0.95/230VAC; PF≥0.93/277VAC full load

Anti-corossion grade: WF2

Leading-in cable length: 300mm±20mm

Leading-in cable size: IEC60245 3*1.0mm

Lens: Tempered glass

IK 06.





Applications:



LED flood lights provide flexible lighting options where the lights can be mounted on poles, walls, roof tops or even on the ground.





100W led flood light specifications:



Power Full real lumen flux, Lm Input voltage, V IP Grade Color temperature PF Chip brand Driver brand Working temperature, C
50W 5500lm 100-240VAC IP65 2700-6500K >0,9 EPISTAR HG -40 to +55
100W 11000lm 100-240VAC IP65 2700-6500K >0,9 EPISTAR HG -40 to +55
150W 16500lm 100-240VAC IP65 2700-6500K >0,9 EPISTAR HG -40 to +55
200w 22000lm 100-240VAC IP65 2700-6500K >0,9 EPISTAR HG -40 to +55
300W 33000lm 100-240VAC IP65 2700-6500K >0,9 EPISTAR HG -40 to +55





CRI Warranty Housing material Cover material Dimension of the product (L.xWxH), cm net weight ,kg quantity in outer box, pcs Gross weight outer box,kg Outer box size,cm
80 3 years AL. Tempered glass 56*25*58CM 25.2 14 26 56*25*58
80 3 years AL. Tempered glass 44*31*36CM 17 5 18 44*31*36
80 3 years AL. Tempered glass 50*35*43CM 18.8 4 20 50*35*43
80 3 years AL. Tempered glass 68*34*43CM   4   68*34*43
80 3 years AL. Tempered glass 63*50*16CM 7.52 1 8.5 46*40*15



Competitive Advantage:

  1. It is equipped with choice of unique optics and lumen level to suites various applications with different beam.

  2. Universal mounting bracket offers easy angle adjustment of the flood light luminaire.

  3. It is highly reliable, efficient and sturdy

  4. It delivers high level of energy saving

Tempered Glass Lens Outdoor LED Flood Lights 100 Watt IP65 Die Casting Aluminum 0Tempered Glass Lens Outdoor LED Flood Lights 100 Watt IP65 Die Casting Aluminum 1Tempered Glass Lens Outdoor LED Flood Lights 100 Watt IP65 Die Casting Aluminum 2
