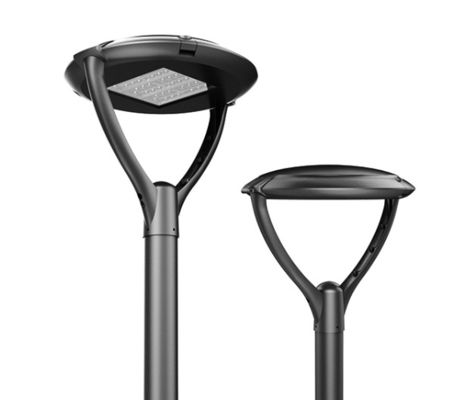

IP66 IK>08 80W Garden Light Luminaire 4000K With 1-10V Driver SPD10KV 140LM/W

Place of Origin Made in China
Brand Name A-wei lighting
Model Number AG018-B
Minimum Order Quantity 100
Price Negotiable
Packaging Details 1pc/carton
Delivery Time 7-20 days base on order quantity
Payment Terms By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C
Supply Ability 8000PCS/Month.

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification CE,RoHS Product Name Garden Light Luminare AG018-B
Power 80W 100W 120W Working Life >50000hrs
Input Voltage AC100-265V Cri (ra>) 80
Ip Rating IP66 Warranty 5 Years Led Garden Light
High Light

Garden Light Luminaire 4000K

,

IP66 80W Garden Light Luminaire

Leave a Message
Product Description

IP66 IK>08 80W Garden Light Luminare 4000K With 1-10V Driver SPD10KV 140LM/W







Description:



  • power  30W 40W 50W 60W 80W 100W 120W 150W
  • 5000K Color Temperature
  • packing size: 490*490*558
  • Shell materials: Aluminum & PC.

  • Finish: Dark Bronze/White
  • Net Weight: 5.0kgs
  • Lumileds LED high luminos efficiency and long life.





LED Garden Light Fixtures Specifications:



Model No MOON-STAR AG018-B
Power 60W 80W 100W 120W 150W
Len chips Qty (3030) 72 108 108 144 144
Len chips Qty (5050) 24 36 36 48 48
Luminaire Flux (LM) 7920 10400 12500 15000 18000
LED Chips Led (other brand of led upon request)
Luminaire Efficacy 130-150 LM/W
CCT 4000K (2700-6500K upon request)
CRI 70 (80 upon request)
Lifetime 108000H (at 25 ambient temperature)
Operating Temperature -3055
Driver Meanwell/Inventronics (other brand of driver upon request)
Electrical Class I or Class II
Input voltage: 100-277VAC/50-60HZ; 108-305VAC/50-60HZ
10KV/20KV SPD
Cut-off connector (Power automatically switch off when opening)
Beam angle TYPE II, TYPE III
Dimming DALI / 1-10V / PWM / FIVE LEVELS DIMMING /
Options Photocell / Surge protection device / External cable (different length upon request)
Color Grey / Black / White (other color upon request)
Tightless Level IP66
Impact Resistance IK08
Standards & Certification ISO 9001:2015
CE / RoHS







Outdoor Led Garden Lights Applications:



Mainly used in urban slow lane, narrow lane, residential areas, tourist attractions, parks,squares and other public paces.
