Wet Locations LED Warehouse Lighting High Bay Die Casting Aluminum Materials

Place of Origin Made in China
Brand Name A-wei lighting
Certification CE, RoHS, ETL, DCL,SAA
Model Number AW-EPHB612
Minimum Order Quantity 100
Price Negotiable
Packaging Details 1pcs/carton
Delivery Time 7-20 days base on order quantity
Payment Terms By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C
Supply Ability 8000PCS/Month.
Product Details
Name Explosion Proof Led Flood Light Material Die-casting Aluminum
Power 40W-80W Working Life >100000hrs
Color Temperature(cct) 3500K-6000K Input Voltage(v) AC85-260V
Protection IP65 Application Chemical Plants
High Light

explosion proof lighting

,

explosion proof luminaires

Leave a Message
Product Description

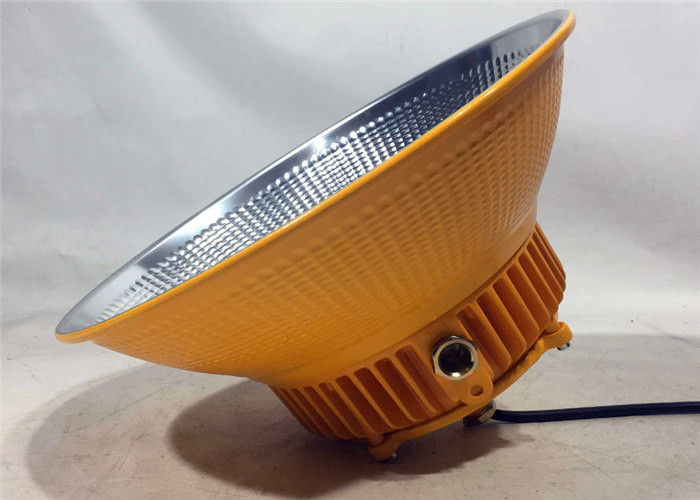

40W-80W 120lm/W Explosion Proof LED Light Rated For Hazardous / Wet Locations LED High Bay Luminaire LED CREE





Description:



Rated voltage: AC220V 50/60Hz
Light source: LED CREE
Protection level: IP66
Light flux: ≥120lm/W
Anti-corrosion grade: WF2
LED light source: 40W-80W
Lamp weight: 4.5kg





Specifications:



Type
Power 40W Material Die-casting Aluminium
Input Voltage

AC85-260V

LED Brightness Decay <5%/6000hrs
PF >0.95 Working Life >100000hrs
Driver Efficiency >90% Working Temperature -40-+55°C
Luminous Flux 6000LM Storage Temperature -40-+80°C
Proterction IP66 Protection Level Wet Location/IP66
Color Temperature 3500K-6000K Cable 3 core,18AWG
CRI Ra>80 G.W./N.W.

5.5/4.5KG

Size mm Packing size mm





Competitive Advantage:



1. Energy saving. Reduce the number of luminaires needed, providing excellent

luminaries efficiency more light where you need it.



2. Anti glare, reduces glare in applications where the user may have direct visual

contact with the light source.



3. Shock and vibration resistant tempered glass, reduces the risk of premature

failure.



4. Osram led source. High efficiency lumen output and high CRI.





Applications:



  1. chemical plants
  2. drilling rigs
  3. refineries
  4. other hazardous locations
