Product Details
Place of Origin: Made in China
Brand Name: A-wei lighting
Certification: CE, RoHS, ETL, DCL
Model Number: AW-ST141-2
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: 2pcs/carton
Delivery Time: 7-20 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C
Supply Ability: 10000PCS/Month.
Product Name: |
LED Street Light Fixtures AW-ST141 |
Power: |
100W-250W |
Input Voltage: |
AC85~265V |
Application: |
Highway Roads |
Color Temperature: |
4000K |
Proterction: |
IP66 |
PF: |
>0.95 |
Material: |
Die-casting Aluminium |
IP Rate: |
IP65 |
IK Rate: |
IK08 |
Power Efficiency: |
92% |
Cri(ra>): |
80 |
Average Lumen: |
115-120lm/W |
Warranty: |
5 Years |
Product Name: |
LED Street Light Fixtures AW-ST141 |
Power: |
100W-250W |
Input Voltage: |
AC85~265V |
Application: |
Highway Roads |
Color Temperature: |
4000K |
Proterction: |
IP66 |
PF: |
>0.95 |
Material: |
Die-casting Aluminium |
IP Rate: |
IP65 |
IK Rate: |
IK08 |
Power Efficiency: |
92% |
Cri(ra>): |
80 |
Average Lumen: |
115-120lm/W |
Warranty: |
5 Years |

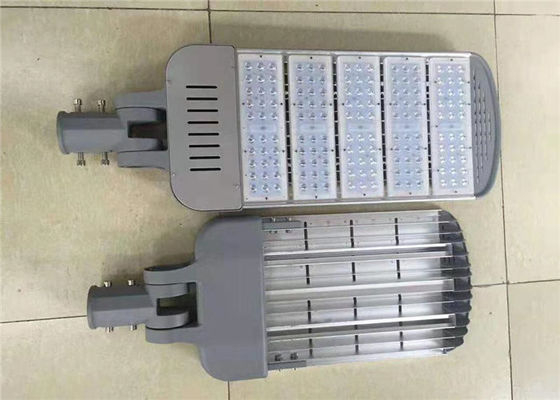

High Lumen 100W-250W Waterproof LED Street LED Street And Roadway Lighting Outdoor LED Pole Lights
Description:
Specifications:
| Name | Features | |
| Type | AW-ST141-1 | AW-ST141-2 |
| Power | 120W | 150W-180W |
| LED Qty. CCT | 3000K / 4000K / 5000K / 6500K | |
| Beam Angle | ||
| Brand of Chips | Cree | |
| CCT LED Qty. | 120pcs | 150-180pcs |
| CRI | >70 / >80 | |
| System Efficiency | 150-160Lm/W | 150-160Lm/W |
| IP Rate | IP65 | |
| Voltage | AC85~265V | |
| Working Environment | -20℃~50℃,20%~90% H.R | |
| Storage Temperature | -20℃~85℃,10%~90% H.R | |
| Driver Efficacy | 90% | |
| PF | >0.95 | |
| Lifetime | 50000H | |
| Size of Lamp | 702*315*80mm | 805*315*80mm |
| Carton | 75.5*32.5*10cm | 84.5*32.5*10cm |
| N.W. | 5.5KG | 6.5KG |
Product information:
| Model | Product size | Packing size |
| 60w Module | 535*315*80 | 56.5*32.5*10 |
| 90w Module | 600*315*80 | 66*32.5*10 |
| 120w Module | 702*315*80 | 75.5*32.5*10 |
| 150w Module | 805*315*80 | 84.5*32.5*10 |
| 180w Module | 905*315*80 |
*Finish:power coating,general colour will be :double grey/sandy black
Applications:
Street Lighting: These LED lights are specifically designed to illuminate streets and roadways, providing clear visibility and enhancing safety for drivers and pedestrians during nighttime hours.
Roadway Lighting: The high lumen output and waterproof design make these LED lights suitable for illuminating various types of roadways, including highways, freeways, and rural roads, ensuring optimal visibility and safety for motorists.
Parking Lot Lighting: These LED lights can be used for illuminating parking lots of different sizes, providing bright and uniform lighting for safe vehicle and pedestrian movement during nighttime hours.
Pathway and Walkway Lighting: The high lumen output and durable construction of these LED lights make them suitable for illuminating pathways, walkways, and sidewalks in outdoor areas, ensuring safe navigation for pedestrians.
Outdoor Area Lighting: These LED lights can be used for general outdoor area lighting in commercial, industrial, and public spaces such as plazas, parks, and campuses, providing bright and efficient illumination for enhanced visibility and security.
Industrial Lighting: The high lumen output and robust design of these LED lights make them suitable for industrial applications, including warehouses, manufacturing facilities, and construction sites, where bright and reliable lighting is essential for productivity and safety.
Please note that the listed applications are general examples, and the specific suitability for a particular project or location should be assessed by professionals based on factors such as lighting requirements, area size, and environmental conditions.
