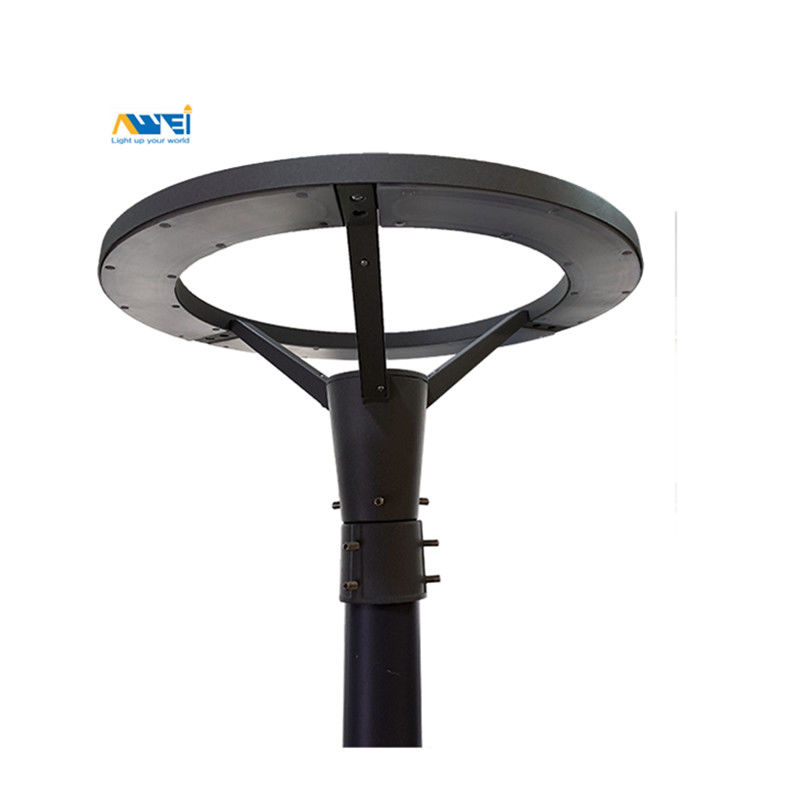

IP65 Waterproof 100LM/W 3030 LED Urban Street Lighting

Place of Origin Made in China
Brand Name A-wei lighting
Certification CE, RoHS, ETL, DCL
Model Number AW3
Minimum Order Quantity 300pcs
Price Negotiable
Packaging Details 1pc/carton
Delivery Time 7-20 days base on order quantity
Payment Terms By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C
Supply Ability 5000PCS/Month.
Product Details
Product Name Exterior Garden Lights AW3 Power 35 Watt 50 Watt 60 Watt 70 Watt
Luminous Efficacy 100lm/W Input Voltage AC85-265V
Cri (ra>) 80 Ip Rating IP65
Warranty 5 Years Led Garden Light Light Source 3030
High Light

3030 LED Urban Street Lighting

,

IP65 Urban Street Lighting

,

100LM/W Urban Street Light

Leave a Message
Product Description



5 Years Warranty Ip65 Waterproof 100lm / W City Used Urban Street Lighting





Outdoor Garden Lights Description:



Luminous Efficacy(lm/w):100
Input Voltage(V): 100-277V
Lamp Luminous Flux(lm): 3500LM
Color Temperature(CCT): 3000-6500K
Working humidity: 10%~90%
Power Factor: >0.95
IK Rating: IK09
Warranty Period: 5 years

CRI (Ra>): 70
Working Temperature(℃): -40 - 50
Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum
IP Rating: IP65





Specifications:



Product code AW3
Rated Power 30-60W
Color Temperature 2700-6500K
Luminous Flux 3300-6600lm
Input Voltage AC85-265V
Frequency Hange 50/60HZ
Power Factor PF>0.9
Color Rendering Index >70
Temperature of working condition -40°C-60°C
Humidify of working Condition 10-90%
IED Lifetime >50000H
Protection Grade IP65
Material Die Casting Aluminum/PC Diffuser
Installation Spigot Dia 60mm
Mounting Type Post top
Net Weight/ Gross Weight 7kg/8kg
Packing Size 620*620*420mm





Structure Features:



1. Shell materials: Aluminum & PC.




2. Finish: Dark Bronze



3. Net Weight: 7kgs



4. Dimension: 580*580*320





Application:



Garden, Courtyard, Pathway,Road, Outdoor, etc.
