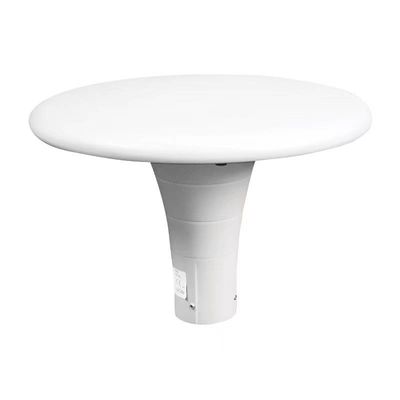

50W 60W 4000K White Housing Led Garden Light IP66

Place of Origin Made in China
Brand Name A-wei lighting
Model Number AG029
Minimum Order Quantity 100
Price Negotiable
Packaging Details 1pc/carton
Delivery Time 7-20 days base on order quantity
Payment Terms By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C
Supply Ability 8000PCS/Month.

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification CE,RoHS Product Name LED Garden Lights AG029
Power 50W 60W Working Life >50000hrs
Input Voltage AC100-265V Cri (ra>) 80
Ip Rating IP66 Warranty 5 Years Led Garden Light
You can tick the products you need and communicate with us in the message board.
Power LEDs Input Voltage Installation Pipe Dia Nominal flux
30W 48 100-240VAC Φ76mm 3600lm
60W 108 100-240VAC Φ76mm 7200lm
100W 192 100-240VAC Φ76mm 12000lm
Leave a Message
Power LEDs Input Voltage Installation Pipe Dia Nominal flux
Product Description

50W 60W 4000K White Housing Led Garden Light IP66





Description:



Installation:Horizontal or vertical
Lamp Weight:6.1kg
Projected area:0.176m²
Box size(DxH):76mmx80mm
Screw installation torque:8Nm

50W 60W 4000K White Housing Led Garden Light IP66 050W 60W 4000K White Housing Led Garden Light IP66 1



LED Garden Light Fixtures Specifications:



Model No AG029
Power 30W 60W 100W
Len chips Qty (3030) 48 108 192
Luminaire Flux (LM) 3600LM 7200LM 12000LM
LED Chips Led (other brand of led upon request)
Luminaire Efficacy 130-150 LM/W
CCT 4000K (2700-6500K upon request)
CRI 70 (80 upon request)
Lifetime 108000H (at 25 ambient temperature)
Operating Temperature -3055
Driver Meanwell/Inventronics (other brand of driver upon request)
Electrical Class I or Class II
Input voltage: 100-277VAC/50-60HZ; 108-305VAC/50-60HZ
10KV/20KV SPD
Cut-off connector (Power automatically switch off when opening)
Beam angle TYPE II, TYPE III
Dimming DALI / 1-10V / PWM / FIVE LEVELS DIMMING /
Options Photocell / Surge protection device / External cable (different length upon request)
Color Grey / Black / White (other color upon request)
Tightless Level IP66
Impact Resistance IK08
Standards & Certification ISO 9001:2015
CE / RoHS







AG029 Led Garden Lights Applications:



for indoor or outdoor use



Expressways, highways, avenues, trunk roads, sub-trunk roads, paths, workshops, parks,
schools, residential areas, courtyards, etc.


Vertical installation:





50W 60W 4000K White Housing Led Garden Light IP66 2







Outside Garden Lights Presentation:





50W 60W 4000K White Housing Led Garden Light IP66 350W 60W 4000K White Housing Led Garden Light IP66 4
