Product Details
Place of Origin: Made in China
Brand Name: A-wei lighting
Certification: CE, RoHS, ETL, DCL
Model Number: AW-ST110
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: 1pc/carton
Delivery Time: 7-20 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C
Supply Ability: 10000PCS/Month.
Power: |
100W |
Working Life: |
>50000hrs |
Input Voltage: |
AC100-277V |
Warranty(year): |
5 |
Cri (ra>): |
80 |
Ip Rating: |
IP65 |
IK Rate: |
IK08 |
Power Factor: |
>0.95 |
Power Efficiency: |
92% |
Color Temperature: |
3000K，4000K，6000K |
Material: |
Die-casting Aluminum |
Certificate: |
CE，RoHS |
Power: |
100W |
Working Life: |
>50000hrs |
Input Voltage: |
AC100-277V |
Warranty(year): |
5 |
Cri (ra>): |
80 |
Ip Rating: |
IP65 |
IK Rate: |
IK08 |
Power Factor: |
>0.95 |
Power Efficiency: |
92% |
Color Temperature: |
3000K，4000K，6000K |
Material: |
Die-casting Aluminum |
Certificate: |
CE，RoHS |

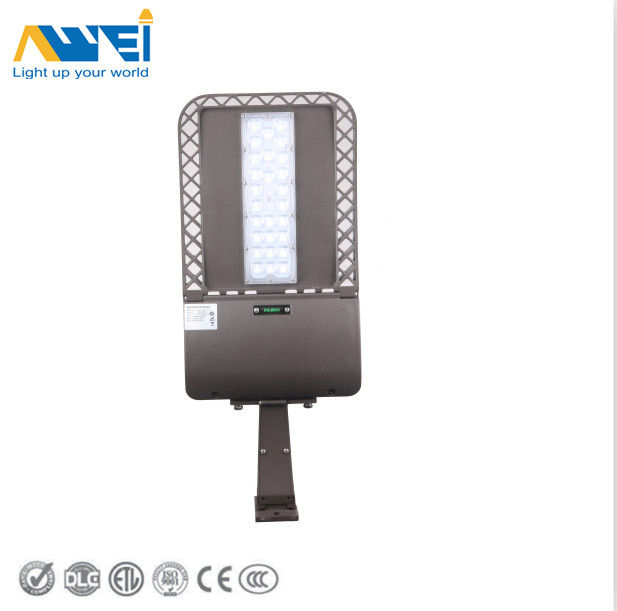

100W IP65 LED Parking Lot Fixtures , Outdoor Lighting Street Lamps Long Working Life
Description:
Specifications:
| Type | |||
| Power | 100W | Material | Die-casting Aluminium |
| Input Voltage | AC100-277V | LED Brightness Decay | <5%/6000hrs |
| PF | >0.95 | Working Life | >50000hrs |
| Driver Efficiency | >90% | Working Temperature | -30-+45°C |
| Luminous Flux | 8000LM | Storage Temperature | -40-+80°C |
| Proterction | IP65 | Protection Level | Wet Location/IP65 |
| Color Temperature | 5000K | Cable | 3 core,18AWG |
| CRI | Ra>80 | G.W./N.W. | 7.5KG/6.0KG |
| Size | 650X270X150mm | Packing size | 680X350X190mm |
Competitive Advantage:
1. Lumileds LED high luminos efficiency and long life.
2. Excellent optical design, greatly improve the light utilization and evenness photocell Control Available(Option)
Structure Features:
1. Shell materials: Aluminum & PC.
2. Finish: Dark Bronze/White
3. Net Weight:6.0kgs
Line Drawing:
Light Distribution Curve:
Outdoor led street lighting product pictures:
Applications:
It is suitable for the street lighting at highways, urban roads and secondary roads,
stadiums, sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
Roads and Highways: Outdoor street lights are commonly installed along roads and highways to provide illumination for safe driving conditions, traffic management, and navigation.
Residential Areas: Street lights are used in residential neighborhoods to ensure the safety and security of residents, allowing them to walk, jog, or engage in outdoor activities during evening hours.
Commercial Districts: Outdoor street lights are employed in commercial areas, such as downtowns and shopping districts, to create an inviting and vibrant atmosphere for businesses and customers, supporting nighttime commerce.
Parks and Recreational Spaces: Street lights are installed in parks, playgrounds, and recreational areas to extend the usability of these spaces into the evening, enabling people to enjoy outdoor activities and enhancing safety.
Public Squares and Plazas: Outdoor street lights are used in public squares, plazas, and gathering areas to provide illumination for social activities, events, and public gatherings.
Pedestrian Walkways and Bike Paths: Street lights are employed along pedestrian walkways, sidewalks, and bike paths to ensure visibility and safety for pedestrians and cyclists, allowing them to navigate during darker hours.
Industrial Areas and Warehouses: Outdoor street lights are utilized in industrial zones and warehouse districts to provide lighting for improved safety, security, and operational efficiency during nighttime activities.
Parking Lots and Garages: Street lights are commonly used in parking lots and garages to enhance visibility, improve security, and assist drivers in parking and navigating the area.
Educational Institutions: Outdoor street lights are installed in and around school campuses and universities to enhance safety for students, staff, and visitors during evening events or activities.
Public Transport Hubs: Street lights are employed near bus stops, train stations, and transit centers to provide visibility and safety for commuters during evening hours.
