Contact Person : Yolanda
Phone Number : 86-138 1391 6713
WhatsApp : +8613813916713

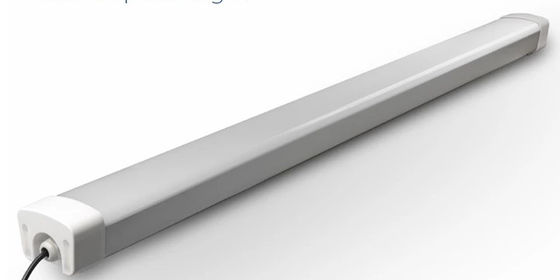

Supermarket Waterproof LED Batten Light AC85 - 265V Input Voltage 0.9 PF

Place of Origin Made in China
Brand Name A-wei lighting
Certification CE, RoHS, ETL, DCL,SAA
Model Number AW-TPL010
Minimum Order Quantity 1000
Price Negotiable
Packaging Details 8Pcs/CTN
Delivery Time 7-20 days base on order quantity
Payment Terms By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C
Supply Ability 10000PCS/Month.
Product Details
Product Name Vapor Proof Led Lights AW-TPL010 Lamp Body Material Aluminum + PC
Input Voltage(v) AC85-265V Ip Rating IP65
Power 20W 40W Working Life >50000hrs
Color Temperature(cct) 3000K-6500K Cri (ra>) 80
High Light

outdoor waterproof led light fixtures


waterproof outdoor lighting fixtures

Leave a Message
Product Description


Ip65 Led Tri Proof Light 20W 40W Led Batten Light Led Vapour Proof Light Fittings For Factory,Supermarket


Supply Ability
Supply Ability:
8000 Piece/Pieces Per Month
Packaging & Delivery
Shanghai Port
Lead Time
7-20 Days




Quick Details


  • Warranty(Years):3/5 years
  • Input Voltage(V):AC 85-265V
  • Lamp Luminous Efficiency(lm/w):100
  • CRI (Ra>):80
  • Working Temperature(℃):-40 - 65
  • Working Lifetime(Hour):30000
  • Lamp Body Material:Aluminum + PC
  • IP Rating:IP65
  • Certification:CE, EMC, LVD, RoHS
  • Place of Origin:Shanghai, China
  • Brand Name:A WEI LIGHTING
  • Model Number:LED batten lights
  • Light Source:LED
  • LED Light Source:SMD 2835
  • Lamp Luminous Flux(lm):4800
  • Color Temperature(CCT):3000K/4000K/6000K
  • PF:0.9
  • Power Efficiency:85%
  • PC Cover:frosted
  • Power:20 / 40Watt
  • Keyword:water proof light fixture





Model No.: AW-TPL010-01 AW-TPL010-02
size (mm) L600*86*69 L1200*86*69
Material PC+Aluminum PC+Aluminum
Power(W): 20W 40W
Voltage AC85-265V
Driver Type Non-isolated constant current
PF >0.95
CRI >80
CCT: 3000-6500K
Lumen Effciency: 90-100/LMW
Weight 1.1KG 2.25KG
Inner box size/cm 63*9*75 123*9*75
Outdoor box size/cm 65*35*21 8PCS 10.35KG 125*35*21 8PCS 19KG
Protection: IP65 IP65
Warranty 3 years 3 years



    Packaging & Delivery


  • Packaging Details 8pcs/carton
  • Port Shanghai,China



Product benefits:

  • Multi proof LED fixture (IP65 waterproof & corrosion-proof & dust-proof);
  • Excellent heat dissipation (aircraft aluminum and rugged polycarbonate);
  • High light output LED SMD2835 provides additional benefits of energy savings, 120lm/w, save 50% energy;
  • Quick and simple installation (pendant/suspending, ceiling/wall mounted installation);
  • Extremely long lifespan lowers maintenance costs by reducing re-lamp frequency;
  • Shockproof and vibration proof, No lead or mercury & No Hazardous & No UV or IR radiation.



Led Triproof Light Applications:


Suitable for indoor and outdoor applications
Supermarket / Shops / Exhibition hall / Parking place / gas station;
Public lighting: Library / School / Tunnel / Metro & Bus & Railway station / Airport;
Industrial lighting: Factory / Warehouse and Etc.


Supermarket Waterproof LED Batten Light AC85 - 265V Input Voltage 0.9 PF 0


Supermarket Waterproof LED Batten Light AC85 - 265V Input Voltage 0.9 PF 1




Q1:Can I have a sample order for led recessed Street Lighti/ Garden Light/ Flood Light/ High Bay/ Tri-Proof Light?

A: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

We can ship samples from our warehouse in changzhou city!


Q2:Is it possible to print my logo on led recessed Street Lighti/ Garden Light/ Flood Light/ High Bay/ Tri-Proof Light?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q3: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.02%.

Secondly, during the guarantee period, we will send new lights with new order for small quantity.

For defective batch products, we will repair them and resend them to you or we can discuss the solution including

re-call according to real situation.


Q4. Can you supply the special lighting design?

A:Sure, LED lighting design including the Dialux simunlation,3D products renderings etc.


Q5. Are you manufacturer?

A: Yes, A WEI Lighting has over 10 years' experience in LED lighting industry.
