CE Outdoor LED Flood Lights 10W - 100W Power High Level Energy Saving

Place of Origin Made in China
Brand Name A-wei lighting
Certification CE, RoHS, ETL, DCL,SAA
Model Number AW-FL213
Minimum Order Quantity 100
Price Negotiable
Packaging Details Carton box with foam 4PCS/CTN
Delivery Time 5-7 working days for sample,10-15 working days for mass production orders
Payment Terms By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C
Supply Ability 7000PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Flood Led Light AW-FL213 Material Die-casting Aluminum
Ip Rating IP65 Power 10W 20W 30W 50W 100W
Working Life >50000hrs Color Temperature(cct) 3000-5500K
Input Voltage AC100-240V Light Source LED
High Light

industrial led flood lights

,

exterior led flood lights

Leave a Message
Product Description



Ip65 Led Flood Light Outdoor Flood Lights Led Fixtures 10W 20W 30W 50W 100W Outdoor Led Flood Light





Description:



LED Floodlight :10W -200W

Light Source: LED

Item Type: Flood Lights

LED Light Source:

Input Voltage(V): AC100-240V

Lamp Power(W): 100w

Lamp Luminous Flux(lm): 13000

Lamp Luminous Efficiency(lm/w): 130

CRI (Ra>): 70

Color Temperature(CCT): 3000~3500K; 3500~4000K; 4000~4500K; 4500~5000K; 5000~5500K

Beam Angle(°): 110

Working Temperature(℃): -40 - 60

Working Lifetime(Hour): 50000

Lamp Body Material: Dia Casting Aluminum

IP Rating: IP65

Certification: CCC, CE, CQC, EMC, LVD, RoHS

Place of Origin: Jiangsu , China (Mainland)

Warranty: 3years

LED chip size: SMD 3030

Chip efficacy: 150lm/w

Power avaliable: 10w 20w 30w 50w 70w 100w 150w 200w

Frequency: 50HZ/60HZ

PF: PF≥0.98/115VAC; PF≥0.95/230VAC; PF≥0.93/277VAC full load

Anti-corossion grade: WF2

Leading-in cable length: 300mm±20mm

Leading-in cable size: IEC60245 3*1.0mm

Lens: Tempered glass

IK 06.





Applications:



LED flood lights provide flexible lighting options where the lights can be mounted on poles, walls, roof tops or even on the ground.





100W led flood light specifications:



Description IP Lighting color Real wattage SMD Real size SMD Real weight(KG)
LED flood light 10w 65 CW or WW 75% 85*115*35mm 0.33
LED flood light 20w 65 CW or WW 75% 140*180*43mm 0.63
LED flood light 30w 65 CW or WW 75% 183*220*48mm 0.87
LED flood light 50w 65 CW or WW 75% 235*285*62mm 1.37
LED flood light 100w 65 CW or WW 75% 288*335*75mm 1.7





Faq
Q1: Can I Have A Sample Order For Led Recessed Street Lighti/ Garden Light/ Flood Light/ High Bay/ Tri-Proof Light?
A: Yes, We Welcome Sample Order To Test And Check Quality. One Sample Or Mixed Samples Are Acceptable.
We Can Ship Samples From Our Warehouse In Changzhou City!

Q2: Is It Possible To Print My Logo On Led Recessed Street Lighti/ Garden Light/ Flood Light/ High Bay/ Tri-Proof Light?
A: Yes. Please Inform Us Formally Before Our Production And Confirm The Design Firstly Based On Our Sample.

Q3: How To Deal With The Faulty?
A: Firstly, Our Products Are Produced In Strict Quality Control System And The Defective Rate Will Be Less Than 0.02%.
Secondly, During The Guarantee Period, We Will Send New Lights With New Order For Small Quantity. For Defective Batch Products, We Will Repair Them And Resend Them To You Or We Can Discuss The Solution Including Re-Call According To Real Situation.

Q4. Can You Supply The Special Lighting Design?
A: Sure, Led Lighting Design Including The Dialux Simunlation,3d Products Renderings Etc.

Q5. Are You Manufacturer?
A: Yes, A Wei Lighting Has Over 10 Years' Experience In Led Lighting Industry.

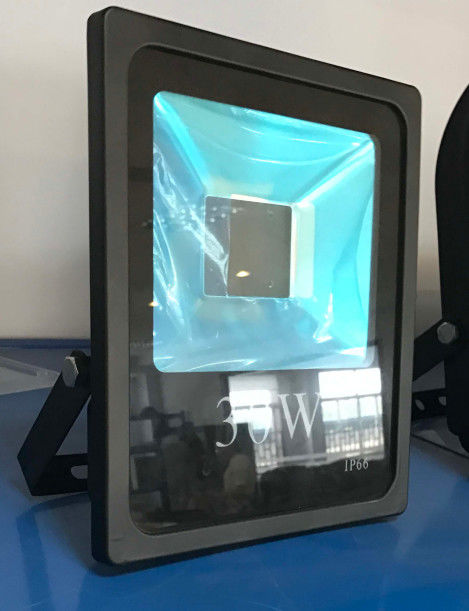

Product pictures:



CE Outdoor LED Flood Lights 10W - 100W Power High Level Energy Saving 0
