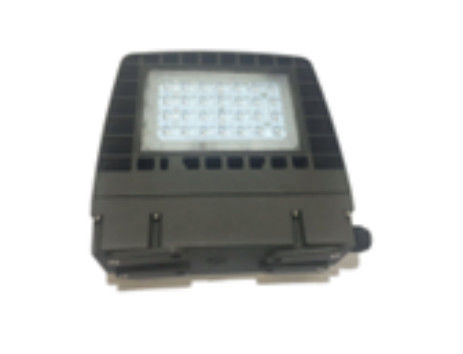

IP65 3000K - 6500K 60W Outdoor LED Wall Pack Die Casting Aluminum Material

Place of Origin Made in China
Brand Name A-wei lighting
Certification CE, RoHS, ETL, DCL,SAA
Model Number AW-WP815
Minimum Order Quantity 100
Price Negotiable
Packaging Details carton packing
Delivery Time 5-7 working days for sample,10-15 working days for mass production orders
Payment Terms By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C
Supply Ability 10000PCS/Month.
Product Details
Product Name 60w LED Wall Pack Material Die-casting Aluminum
Input Voltage(v) AC100-277V Ip Rating IP65
Power 60W Working Life >50000hrs
Color Temperature(cct) 3000K-6000K Application Outdoor,Garden
High Light

exterior wall pack lights

,

commercial led wall pack

Leave a Message
Product Description



IP65 3000K-6500K 60W Outdoor LED Wall Pack Dusk-to-Dawn ETL Rating 5 year Warranty  Exterior Wall Pack Lighting




Description:



Item Type: Outdoor Wall Lights

LED Light Source: LED

Input Voltage(V): 100-277V, 347-480V

Lamp Luminous Flux(lm): 125LM/W

CRI (Ra>): 70

Beam Angle(°): 120

Working Temperature(℃): -30 - 50

Working Lifetime(Hour): 50000

Lamp Body Material: Aluminum

IP Rating: IP65

Application: Theme Park, entryway lighting, security lighting

Watts: 60/100/150w

Efficacy: 125lm/W

Color Temperature: 3000K/4000K/5000K

Housing: Die-cast aluminum body(Bronze/Black). PC diffuse

Installation: Recessed outlet box or wall surface

Environment: damp/wet locations

Additional features: dusk to dawn photocell





Applications:



Installed on the sides of buildings, parking garages, building walkways, and other places around commercial buildings,Security, pathway and perimeter lighting.





Specifications:



CCT:

Warm White: 3000-3300K, Neutral white: 4000-4500K, Cool White: 6000-6500K



LED Watt 60Watt LED Quantity 84pcs 3030 SMD LED
LED Chips SMD LED Driver Meanwell HLG
Lumen Output/CRI 110-130lm/W CRI80+ Working Voltage: 100-305VAC 50/60Hz
Working Temperature -40---50C Warranty 5 years
Housing Color Black&Gray Products Size/NW 235*361*184mm/2.4kg
Beam Angle 180Degree Carton size/Qty 620*500*420mm/4pcs
IP Degree IP65 Qty/NW/Carton 4pcs/9.5kg
Cable output 20cm output Qty/GW/Carton 4pcs/10.5kg





Competitive Advantage:





1. Unique durable finish



2. Save up to 63% in electrical costs



3. Added safety and security, an efficient solution for lighting outdoor spaces.





Structure Features:



Shell materials: Aluminum & Glass.

Finish: Dark Bronze/Black

Net Weight:6.5kgs
