Product Details
Place of Origin: Made in China
Brand Name: A-wei lighting
Certification: CE, RoHS, ETL, DCL
Model Number: AW-ST132-2
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: 1pc/carton
Delivery Time: 7-20 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C
Supply Ability: 10000PCS/Month.
Product Name: |
Led Street Lighting AW-ST132 |
Power: |
50 Watt / 80 Watt / 100 Watt / 150 Watt |
Working Life: |
>50000hrs |
Input Voltage: |
AC100-277V |
Warranty(year): |
5 |
Cri (ra>): |
80 |
Ip Rating: |
IP65 |
Guarantee: |
3-5 Years |
Power Factor: |
>0.95 |
Power Efficiency: |
92% |
IK Rate: |
IK08 |
Certificate: |
CE，RoHS |
Application: |
Highway, Main Road |
Product Name: |
Led Street Lighting AW-ST132 |
Power: |
50 Watt / 80 Watt / 100 Watt / 150 Watt |
Working Life: |
>50000hrs |
Input Voltage: |
AC100-277V |
Warranty(year): |
5 |
Cri (ra>): |
80 |
Ip Rating: |
IP65 |
Guarantee: |
3-5 Years |
Power Factor: |
>0.95 |
Power Efficiency: |
92% |
IK Rate: |
IK08 |
Certificate: |
CE，RoHS |
Application: |
Highway, Main Road |
50W 80W 100W 150W LED Street Light Fixtures IP65 IK09 Meanwell Driver 5000K Outdoor Led Street Lighting
Description:
Specifications:
| Type | |||
| Power | 50W 80W 100W 150W | Material | Die-casting Aluminium |
| Input Voltage | AC100-277V | LED Brightness Decay | <5%/6000hrs |
| PF | >0.95 | Working Life | >50000hrs |
| Driver Efficiency | >92% | Working Temperature | -30-+45°C |
| Luminous Flux | 8000LM | Storage Temperature | -40-+80°C |
| Proterction | IP65 | Protection Level | Wet Location/IP65 |
| Color Temperature | 5000K | Cable | 3 core,18AWG |
| CRI | Ra>80 | G.W./N.W. | KG |
| Size | mm | Packing size | mm |
Competitive Advantage:
|
1.Lumileds LED high luminos efficiency and long life.
2.Excellent optical design, greatly improve the light utilization and evenness photocell Control Available(Option) |

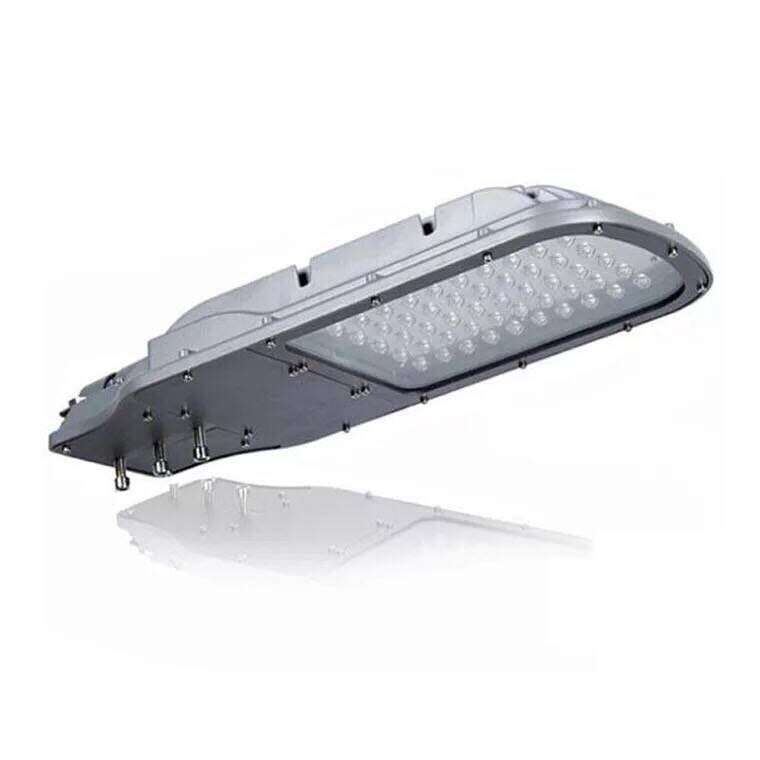

Outdoor led street lighting product pictures:
Applications:
City Streets: LED street light fixtures can be used to illuminate city streets, providing bright and uniform lighting for safe navigation and enhanced visibility for drivers and pedestrians.
Highways and Expressways: These fixtures are suitable for lighting up highways and expressways, ensuring clear visibility for drivers and improving road safety during night-time travel.
Residential Areas: LED street light fixtures can be installed in residential neighborhoods to provide adequate lighting for streets and sidewalks, improving safety and security for residents.
Commercial Areas: These fixtures are suitable for lighting up commercial areas, such as shopping districts, business parks, or industrial zones, providing well-lit environments for businesses and customers.
Parking Lots: LED street light fixtures can be used to illuminate parking lots, ensuring proper visibility and safety for vehicles and pedestrians during the night.
Pathways and Walkways: These fixtures can be installed along pathways, walkways, or cycling tracks, providing guidance and safety for pedestrians and cyclists during low-light conditions.
Public Parks: LED street light fixtures are ideal for lighting up public parks, creating a safe and inviting environment for visitors to enjoy recreational activities during the evening or night.
Campus Lighting: These fixtures can be used for lighting up school campuses, college campuses, or university premises, providing a well-illuminated environment for students, faculty, and staff.
Industrial Areas: LED street light fixtures are suitable for lighting up industrial areas, warehouses, or manufacturing facilities, ensuring proper visibility and safety for workers and vehicles.
Public Spaces: These fixtures can be used to illuminate public spaces such as plazas, squares, or outdoor gathering areas, enhancing the aesthetics and safety of the area.
LED street light fixtures offer energy-efficient and long-lasting lighting solutions for outdoor street lighting applications. The IP65 rating ensures protection against dust and water ingress, while the IK09 rating indicates high resistance to impact and vandalism. The Meanwell driver ensures reliable
