Product Details
Place of Origin: Made in China
Brand Name: A-wei lighting
Certification: CE, RoHS, ETL, DCL，SAA
Model Number: AW-EPFL112
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: carton packing
Delivery Time: 7-20 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C
Supply Ability: 10000PCS/Month.
Material: |
Die-casting Aluminum |
Input Voltage(v): |
AC120-277V |
Ip Rating: |
IP66 |
Power: |
100W |
Working Life: |
100000hrs |
Color Temperature(cct): |
3000-6500K |
Material: |
Die-casting Aluminum |
Input Voltage(v): |
AC120-277V |
Ip Rating: |
IP66 |
Power: |
100W |
Working Life: |
100000hrs |
Color Temperature(cct): |
3000-6500K |

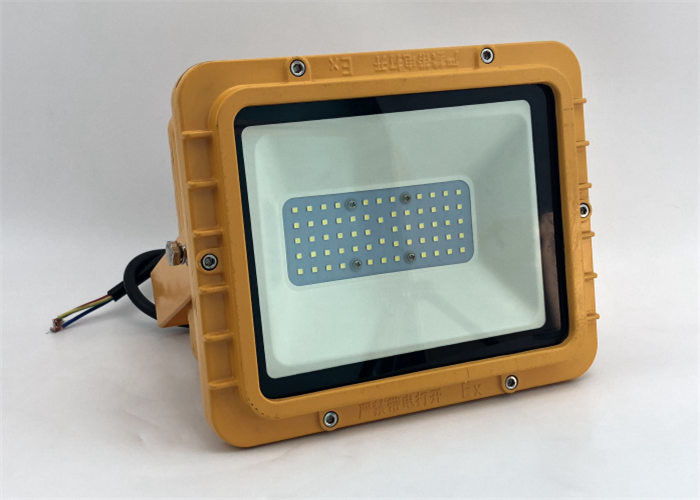

120Lm/W 3000-6500K Explosion proof LED Flood light 40W-60W for Chemical Plants IP66 Industrial Led Lighting
Description:
Explosion-proof LED floodlight rated for hazardous and wet locations
LED technology increases efficiency, eliminates maintenance and supports green initiatives
Rated power: 40W-60W
With light source:
Light flux: 120Lm/W
Lamp efficiency: >0.9
Lamp color temperature: 3000-6500K
Protection level: IP66
Lamp color development: Ra ≥ 80
Anti-corrosion grade: WF1 "WF2
Shell material: aluminum die casting
Service life: 100,000 hours
Warranty period: 3 years
Applications:
For use in chemical plants, drilling rigs, refineries and other hazardous locations
Specifications:
| Type | |||
| Power | 100W | Material | Die-casting Aluminium |
| Input Voltage | AC120-277V | LED Brightness Decay | <5%/6000hrs |
| PF | >0.95 | Working Life | >50000hrs |
| Driver Efficiency | >90% | Working Temperature | -40-+55°C |
| Luminous Flux | 130000LM | Storage Temperature | -40-+80°C |
| Proterction | IP66 | Protection Level | Wet Location/IP65 |
| Color Temperature | 3000-6500K | Cable | 3 core,18AWG |
| CRI | Ra>80 | G.W./N.W. | |
| Size | Packing size | ||
Competitive Advantage:
1. Energy saving. Reduce the number of luminaires needed, providing excellent
luminaries efficiency more light where you need it.
2. Anti glare, reduces glare in applications where the user may have direct visual
contact with the light source.
3. Shock and vibration resistant tempered glass, reduces the risk of premature
failure.
4. Osram led source. High efficiency lumen output and high CRI.
5. Driver module assembly High efficiency LED drivers are designed to provide
reliable operation in even the harshest environments.
6. High strength aluminum alloy housing, can endure 20J impact. IP66, can be
used wet locations robust construction suitable corrosive applications.
7. Ambient temperature from -40°C to 55°C.
Product pictures:
