3000K - 6500K Waterproof Led Light Fixtures Aluminum / PC Body 20W 40W 3 Years Warranty

Place of Origin Made in China
Brand Name A-wei lighting
Certification CE, RoHS, ETL, DCL,SAA
Model Number AW-TPL009-2
Minimum Order Quantity 1000
Price Negotiable
Packaging Details 8Pcs/CTN
Delivery Time 7-20 days base on order quantity
Payment Terms By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C
Supply Ability 10000PCS/Month.
Product Details
Product Name Vapor Proof Led Light AW-TPL009-2 Lamp Body Material Aluminum + PC
Input Voltage(v) AC85-265V Ip Rating IP65
Power 20 Watt ,40 Watt Working Life >50000hrs
Color Temperature(cct) 3000K-6500K Cri (ra>) 80
High Light

outdoor waterproof led light fixtures

,

waterproof outdoor lighting fixtures

Leave a Message
Product Description





20W 40W Ip65 LED 4ft Tri-proof Led Light Linear Batten Tube For Office / School / Supermarket





Description:

  1. Power:20 / 40Watt
  2. Warranty(Years):3
  3. Input Voltage(V):AC 85-265V
  4. Lamp Luminous Efficiency(lm/w):100
  5. CRI (Ra>):80
  6. Working Temperature(℃):-40 - 65
  7. Working Lifetime(Hour):30000
  8. Lamp Body Material:Aluminum + PC
  9. IP Rating:IP65
  10. Certification:CE, EMC, LVD, RoHS
  11. Model Number:LED batten lights
  12. ColorTemperature(CCT):3000K/4000K/6000K
  13. PF:0.9
  14. Power Efficiency:85%
  15. Keyword:water proof light fixture



Specifications:



Mould Vol Current PF POWER led stype Work Temp material
Water proof light 12v dc 0.36A 0.9 20W 2835 -25→+50 AL+PC



Efficiency color temperature IP Rating warranty Product Size mm pcs/ctn Carton Size(mm)
110-115/LMW 6000K IP65 3 year 1200*68.4*83.4 8 1310*280*250







Model No.: AW-TPL009-01 AW-TPL009-02
size (mm) L600*68.4*83.4 L1200*68.4*83.4
Material PC+Aluminum PC+Aluminum
Power(W): 20W 40W
Voltage AC85-265V
Driver Type Non-isolated constant current
PF >0.95
CRI >80
CCT: 3000-6500K
Lumen Effciency: 110-115/LMW
Weight 0.9KG 1.65KG
Inner box size/cm 700*90*75 1300*90*75
Outdoor box size/cm 710*280*250 8PCS 9KG 1310*280*250 8PCS 14.85KG
Protection: IP65 IP65
Warranty 3 years 3 years







Applications:



Home

Office

School

Factory

Supermarket

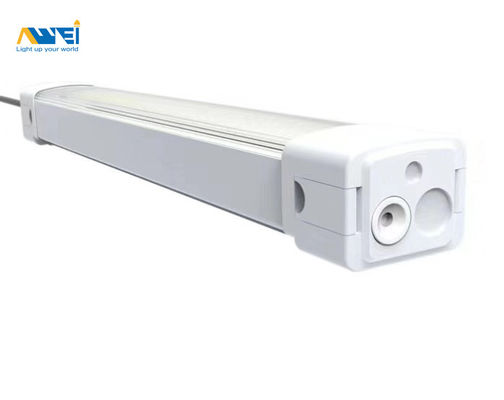

Led Tri Proof Lamp Product pictures:



3000K - 6500K Waterproof Led Light Fixtures Aluminum / PC Body 20W 40W 3 Years Warranty 0

3000K - 6500K Waterproof Led Light Fixtures Aluminum / PC Body 20W 40W 3 Years Warranty 1

3000K - 6500K Waterproof Led Light Fixtures Aluminum / PC Body 20W 40W 3 Years Warranty 2
