IP66 WF2 Rated Explosion Proof LED Light Explosive Gas Environment Application

Place of Origin Made in China
Brand Name A-wei lighting
Certification CE, RoHS, ETL, DCL,SAA
Model Number AW-EPHB
Minimum Order Quantity 100
Price Negotiable
Packaging Details 1pcs/carton
Delivery Time 7-20 days base on order quantity
Payment Terms By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C
Supply Ability 8000PCS/Month.
Product Details
Name Explosion Proof Led Flood Light Material Die-casting Aluminum
Power 60W-120W Working Life >100000hrs
Color Temperature(cct) 5400K-6000K Input Voltage(v) AC85-260V
Protection IP65 Application Chemical Plants
High Light

explosion proof work light


explosion proof luminaires

Leave a Message
Product Description


40W-80W 120LM / W Explosion Proof LED Light IP66 WF2 Rated For Explosive Gas Environment AC220V 50/60Hz





Rated voltage: AC220V 50/60Hz
Protection level: IP66
Anti-corrosion grade: WF1 "WF2
Installation method: X: ceiling type, b: wall type, g: boom type, f: flange type, h: guardrail type
LED light source: 60W-120W
Lamp weight: 5.4kg





This product has good explosion-proof function, suitable for IIA, IIB, IIC explosive gas environment and various inflammable and explosive places, mainly used in railway, electric power, metallurgy, petroleum, petrochemical, chemical, steel, aviation, ship and each Efficient lighting in factories, stations, large facilities, venues and other places.







ITEM symbol Description UNIT
Rated Voltage VOLT AC220 V
Power P 40-80 W
Protection Level IP IP66 IP
Lighting Angle θ 120 °
LED Qty / 60 80 PCS
base specifications / CREE3030
Anticorrosion grade / WF2
Explosion proof grade / Ex d IIC T6
Light efficiency η 120 Lm/W
Frequency f 50/60 Hz
Power Factor PF >0.95 PF
Operating Temperature TOPR -30~50
Storage Temperature TOPR -30~50
Light Source / led PCS
Correlate Color Temperature Tc 3000-6500 K
Color Rendering Index CRI ≥70 RA
LED'S Operating Life LIFE 100000 Hours
Start-up time T ≤0.2 S
Executive standard / GB3836.1,GB3836.2
Weight / 3.9 KG
Size / Φ225×189 mm




Packaging logistics












Outer box 46.5*27*53CM 1 N.W. 4*3.9kg
Foam 25.5*22.3*6.6CM 8 G.W. 16.5kg
Packaging method 4pcs/ctn



Competitive Advantage:


1. Adopt imported Cree LED source, the average service life is up to100,000 hours, the power supply adopts wide voltage processing,which can realize constant current output and has short circuit and over voltage protection, greatly improves the service life of the lamp.


2. Adopt a one-piece streamlined structure, increased thermal performance, the radiator is sprayed with polymer material, which is beneficial to heat radiation and further improves heat dissipation.


3. The light projection is even and soft, especially suitable for various low-top, platform, high-top, high-shed and other places as fixed lighting. The interior of the lamp body is made of antivibration material and shock-absorbing structure, which can work in various high-frequency and strong vibration places for a long time.


4. The larger power supply cavity design not only greatly satisfies the assembly space, but also further improves the heat dissipation performance.


5. The protection level of the lamp body is IP68, the anti-corrosion grade can reach WF2, and the surface of the lamp body won't corrode nor rust for a long time.


6. Various installation methods such as ceiling type, curved rod type, flange type, U-bracket(adjustable angles) are available.

7. The transparent lampshade adopts diffused anti-glare Lingjing tempered glass, which has high purity, corrosion resistance and impact resistance, and the light transmittance can reach 95%-98%.prominent

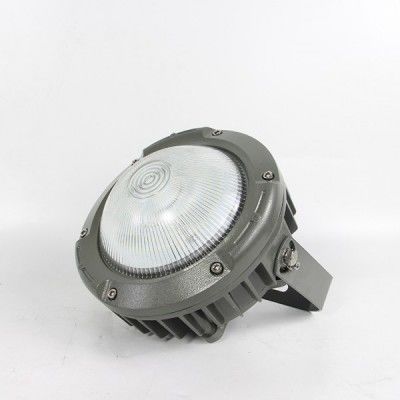

Product pictures:


IP66 WF2 Rated Explosion Proof LED Light Explosive Gas Environment Application 0
