Ultra Thin 60x60 Square Led Panel Light Wall Mount 600x600 Waterproof

Place of Origin Made in China
Brand Name A-wei lighting
Certification CE, RoHS, ETL, DCL
Model Number AW-PL001
Minimum Order Quantity 1000pcs
Price Negotiable
Packaging Details 1pc/carton
Delivery Time 7-20 days base on order quantity
Payment Terms By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C
Supply Ability 10000PCS/Month.

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 36W Working Life >50000hrs
Input Voltage 180-260V Warranty(year) 3 Year Warranty
Cri (ra>) 80 Ip Rating IP65
Product Name LED Panel Light Color Temperature(cct) 4000K/6000K
High Light

water resistant light fixtures

,

waterproof outdoor lighting fixtures

Leave a Message
Product Description



Ultra Thin Ultra Slim 60x60 Wall Mounted Square 600x600 Ip65 Waterproof Led Ceiling Panel Light





Description:



Superior Aluminum Alloy materials. Stylish everlasting color aluminum frame with advanced anodized and oxidation treatment. Advanced designing makes the ceiling lighting more elegant.
• Different sizes of led panel light for your options. Diversity in shape (square, rectangle)
• Easy to install. Ideal to be built into system ceilings, offices, and can be used as a suspended light fixture.
• LED panel light direct replace T8 and T5 fixtures.
• Lightman led panel light is with high efficiency, maximum uniformity by Mitsubishi light guide plate.
• The beam angle of led panel light is160°.
• Innovated structure heating design.
• EVA foam protects led panel light guide plate from reshaping.
• Constant current driver with a power factor more than 0.95;

• IP Rating is IP65 and IP67 for option.
• Waterproof Lock cable DC plug for led panel light.
• LED panel lights are CE, ROHS, FCC, TUV, GS, CB, SAA, PSE and EMC certified.





Specifications:



Power Consumption 36 W 42 W 48 W
Luminous Flux (Lm) 3600lm 4200lm 4800lm
LED Type SMD 2835
Color Temperature (K) 2800 - 6500K
Color Warm/Natural/Cool White
Dimension 600*600*20mm
Beam Angle (degree) >120°
Light Efficiency (lm/w) >100lm/w
CRI >80
Power Factor >0.95
Input Voltage AC 85V - 265V
Frequency Range (Hz) 50 - 60Hz
Working Environment Indoor
Material of Body Aluminum alloy frame and PS diffuser
IP Rating IP65
Operating Temperature -20°~65°
Dimmable Optional
Life span 50,000hours
Warranty 3Years



Structure Features:



1. Shell materials: Aluminum

2. Finish: White /Silver

3. Net Weight:1.4kgs





Product pictures:

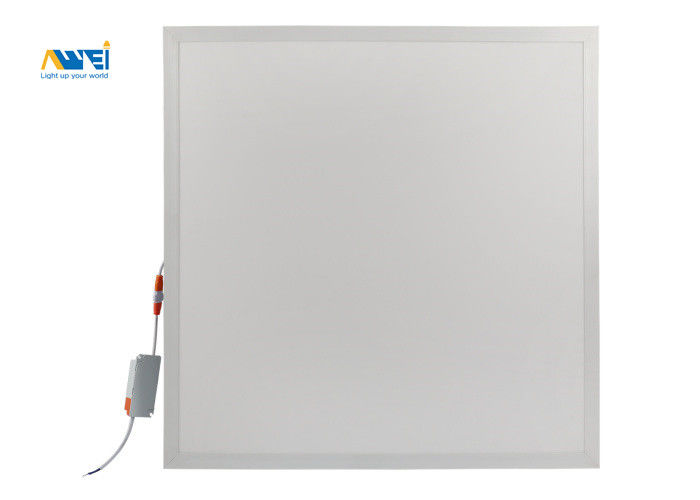

Ultra Thin 60x60 Square Led Panel Light Wall Mount 600x600 Waterproof 0





Applications:



Mainly used in both residential and commercial buildings, such as bar, office, meeting room, shopping mall, hotel, restaurant, housing, showroom, school, outdoor decoration, hospital etc









Q1: What is the type of your LED resources?
A: We use Epistar SMD2835 for led light source with high brightness and low decay, and SMD5050 for RGB led panel light. Different color termperature for your option,such as 2700-3200K,4000-4500K,5000-5500K,6000-6500K. And led CRI is more than 80, and beam angle is biger than 120°.



Q2: What is the material of your LGP?
A: Our LGP is PMMA, and the thickness has 3mm and 4mm for option, which are from ChiMei Optoelectronics Corp or Japan Mitsubishi Corporation.



Q3: What is the material of your led panel light frame and diffusion plate?
A: Our led panel light frame is 6063 aluminum alloy with better heat dissipation. We use 1.5mm anti-fire PC diffusion plate.



Q4: What are your available led panel light sizes?
A:
We have many different led panel light shape and size such as:
Round led panel light size: 90mm,120mm,145mm,160mm,180mm,200mm, 240mm,300mm etc;
Glass led panel light size: 120mm,160mm,200mm,240mm etc;

Square:295x295mm, 595x595mm etc. Rectangle: 595x295mm,1195x195mm,1195x295mm,1195x595mm;
And if you need, we can make customized led panel light size.


Q5: Do you have dimmable led panel lights?
A: Yes,we have several types of dimmable LED panel lights, triac dimmable, 0-10v dimmable, 24VDC & CCT
& RGB dimmable LED panel light with remote controller or DMX.


Q6: How do you guarantee your product quality?
A: From material purchasing to production finishing, we have a full set of strict inspection process to ensure exceptional quality problem, including IQC, QC&A, OQC. Moreover, before production, our technology department engineers will assess the production process to ensure each process in the right way.



Q7: Can you make customized products?
A: Yes, most of our products can be made to fit your individual application. OEM and ODM are accepted.



Q8: Can you offer cheap shipping cost to import to my country?

A: we have long-standing forwarder which can offer the most competitive price for your reference. Normally, For small order, express will be best .And for bulk order, it is better to by sea but need much time.





Q9: How about your packing?



A: We have two packing solutions for your choices:
