PS Fire Material Ip65 40w Led Tri Proof Lamp

  • PS Fire Material Ip65 40w Led Tri Proof Lamp
  • PS Fire Material Ip65 40w Led Tri Proof Lamp
  • PS Fire Material Ip65 40w Led Tri Proof Lamp
  • PS Fire Material Ip65 40w Led Tri Proof Lamp
  • PS Fire Material Ip65 40w Led Tri Proof Lamp
Place of Origin Made in China
Brand Name A-wei lighting
Certification CE, RoHS, ETL, DCL，SAA
Model Number AW-TPL008-4
Minimum Order Quantity 1000
Price Negotiable
Packaging Details 8Pcs/CTN
Delivery Time 7-20 days base on order quantity
Payment Terms By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C
Supply Ability 10000PCS/Month.

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 40w Led Tri-proof Light AW-TPL008-4 Lamp Body Material Aluminum + PC
Input Voltage(v) AC85-265V Ip Rating IP65
Power 40W 50W Working Life >50000hrs
Color Temperature(cct) Warm White / Natural White / Cool White Cri (ra>) 80
High Light

ip65 led tri proof lamp

,

40w tri proof lamp

,

PS Fire Material Tri Proof Lamp
Leave a Message
Product Description

High Quality Safe And Reliable PS Fire Material Ip65 Waterproof Fixture Lighting 40w Led Tri-Proof Lamp





Quick Details





Diffuser material: PS diffuser

Body material: ABS base

Metal Tray: White powder coated metal tray

Clip: Stainless Steel clip or plastic clip

Ballast: Can with magnetic ballast or electronic ballast

Power: 2*10W/2*12W/2*20W/2*24W/2*25W/2*30W

IP rate: IP 65



Information
Power 40/50W
lnput voltage AC85-265V
Luminous FLUX 100lm/w
Material Aluminum+pc
Sensing range 5-8m
Temperature 2700-6500K
Hole diameter 600/900/1200/1500
Shelf life 3 years

PC Cover

 frosted/Clear





Specifications:





Product Code



LS020WTPN1X18E



LS030WTPN1X36E

LS040WTPN1X36E

LS050WTPN1X58E

LS060WTPN1X58E
Dimension 600*79.5*64mm 1200*79.5*64mm 1500*79.5*64mm
Power Consumption 20W 30W / 40W 50W / 60W
Luminaire Flux 2400lm 3600lm / 4800lm 6000lm / 7200lm
Luminaire Flux 2800lm 4200lm /5600lm 7000lm / 8400lm
Luminaire Efficacy 120LM/W and 140LM/W for choice
Led Spec. LM80 approved SMD2835
CCT 4000K / 5000K
CRI >80
Driver Brand Lite Science /
Input 220~240Vac 50/60Hz
Power Factor >0.95 (10W: P.F.>0.90)
IP Rate IP65
Working Temp. -20℃~+45℃
Lifespan >50,000hours
Warranty 5 Years
Certificates CE, EMC, LVD, RoHS, SAA, C-TICK



Model No.: AW-TPL008-01 AW-TPL008-02
size (mm) L1200*86*69 L1200*86*69
Material PC+Aluminum PC+Aluminum
Power(W): 40W 50W
Voltage AC85-265V
Driver Type Non-isolated constant current
PF ＞0.95
CRI ＞80
CCT: 3000-6500K
Lumen Effciency: 90-100/LMW
Weight 2.25KG 2.25KG
Inner box size/cm 123*9*75 123*9*75
Outdoor box size/cm 125*35*21 8PCS 19KG 125*35*21 8PCS 19KG
Protection: IP65 IP65
Warranty 3 years 3 years





​    Packaging & Delivery



  • Packaging Details 8pcs/carton
  • Port Shanghai,China





Product benefits:



  • Multi proof LED fixture (IP65 waterproof & corrosion-proof & dust-proof);
  • Excellent heat dissipation (aircraft aluminum and rugged polycarbonate);
  • High light output LED SMD2835 provides additional benefits of energy savings, 120lm/w, save 50% energy;
  • Quick and simple installation (pendant/suspending, ceiling/wall mounted installation);
  • Extremely long lifespan lowers maintenance costs by reducing re-lamp frequency;
  • Shockproof and vibration proof, No lead or mercury & No Hazardous & No UV or IR radiation.





Led Triproof Light Applications:



  1. Suitable for indoor and outdoor applications
  2. Supermarket / Shops / Exhibition hall / Parking place / gas station;
  3. Public lighting: Library / School / Tunnel / Metro & Bus & Railway station / Airport;
  4. Industrial lighting: Factory / Warehouse and Etc.





Product photos:

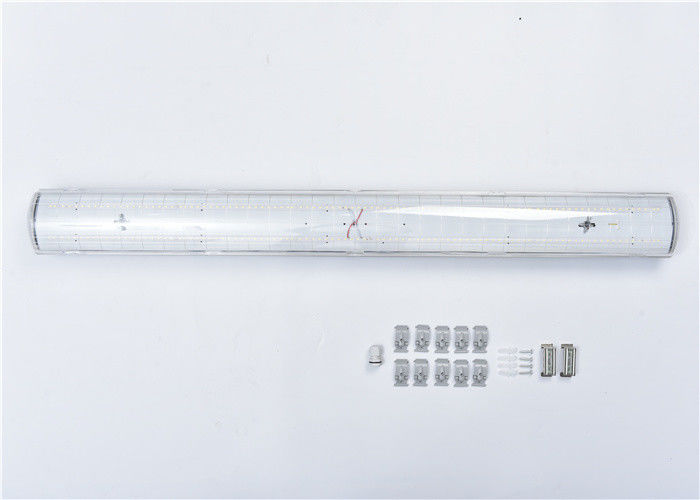

PS Fire Material Ip65 40w Led Tri Proof Lamp 0
