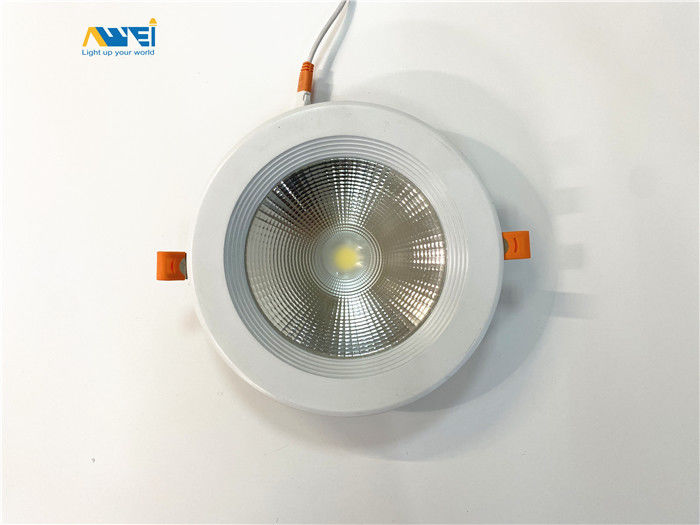

20W 30W SMD 5730 LED Round Ceiling Recessed Downlight
Place of Origin | Made in China |
---|---|
Brand Name | A-wei lighting |
Certification | CE, RoHS, ETL, DCL |
Model Number | AW-D-003 |
Minimum Order Quantity | 1000pcs |
Price | Negotiable |
Packaging Details | 1pc/carton |
Delivery Time | 7-20 days base on order quantity |
Payment Terms | By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C |
Supply Ability | 10000PCS/Month. |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPower | 20W 30W | Working Life | >50000hrs |
---|---|---|---|
Input Voltage | 180-260V | Warranty(year) | 3 |
Cri (ra>) | 80 | Ip Rating | IP65 |
Product Name | LED Downlight | Color Temperature(cct) | 4000K/6000K |
High Light | Round Ceiling Recessed Downlight,30W Ceiling Recessed Downlight,SMD 5730 LED Ceiling Downlight |
Downlight 20W 30W 85-265V Recessed Ceiling Round LED Commercial Lighting
Description:
1.Available voltage: 85-265V
2.Power: 20w/30w
3.LED Type: SMD 5730
5.Lumens flux: 2000lm/3000lm
6.Cut-size:20w:6"/30w:8"
7.Material: Aluminum
8.Type: led ceiling light round light fixture
9.Package includes: 1 LED downlight +1 power supply
Specifications:
LED power | 3w | 5w | 7w | 10w | 15w | 20w | 30w |
Output | 300lm | 500lm | 700lm | 1000lm | 1500lm | 2000lm | 3000lm |
LED Light Source | COB / SMD | ||||||
Beam angle | 60 degree | ||||||
Input voltage | AC100-277V | ||||||
Frequency Range | 50-60HZ | ||||||
CRI | >80 | ||||||
Working Temperature | -40°c-65°c | ||||||
Storage Temperature | -25°c-65°c | ||||||
Color of housing | Aluminum,white | ||||||
Lifespan | 50,000+hrs | ||||||
Certificate | CE/ROHS/ERP/SAA/SASO/GS | ||||||
COB Parameter | |||||||
PCB | Ceramic | ||||||
Chip size | 11MM | 20MM | 20MM | 32MM | 32MM | 42MM | 60MM |
Output | 300lm | 500lm | 700lm | 1000LM | 1500LM | 2000lm | 3000LM |
CRI | >80 | ||||||
Voltage | 30-33vDC | ||||||
Current | 300mA | ||||||
Driver Parameter | |||||||
Input | AC100-277vAC | ||||||
Output | 30-35vDC,300mA | ||||||
Power Factor | 0.9-0.99 | ||||||
Power Efficiency | 88% | ||||||
Certificate | EMC/TUV/CE/CQC/PSE |
Applications:
Mainly used in both residential and commercial buildings, such as bar, office, meeting room, shopping mall, hotel, restaurant, housing, showroom, school, outdoor decoration, hospital etc
Product Features:
led home decorative lamp 20w 30w 8 inch recessed led ceiling down light
IP65 cob downlights has waterproof screw and wateproof strip, waterproof DC connector. no rust, no corrosion.
