| Brand Name: | AWEI lighting |
| Model Number: | AW09 |
| MOQ: | 50UNITS |
| Price: | negotiation |
| Delivery Time: | 7-20 days base on order quantity |
| Payment Terms: | By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C |

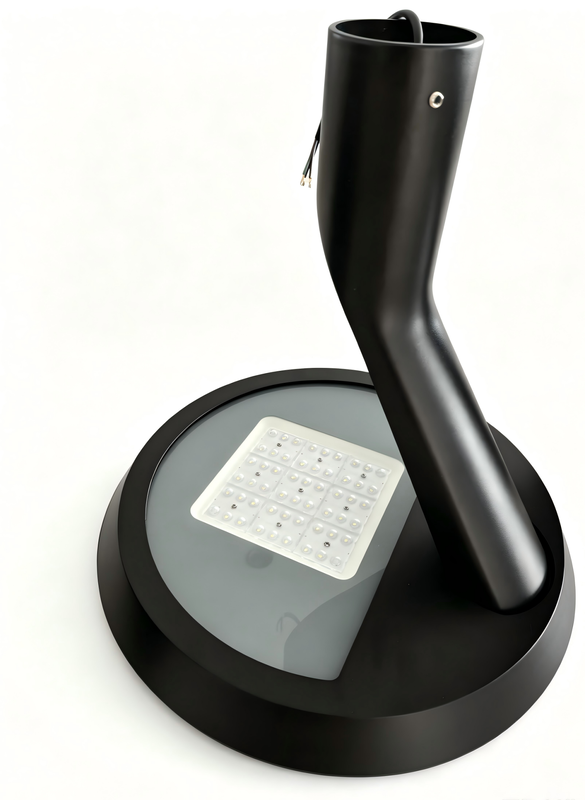

50W High Efficiency LED Post Top Light 20W-100W for Parks, Pathways & Urban Streets
Description:
The AW09 LED Post Top Light is a modern outdoor luminaire designed for municipal streets, parks, residential communities, campuses, commercial areas, and landscape lighting projects. Featuring a sleek circular profile and slim structural design, AW09 combines contemporary aesthetics with reliable lighting performance, making it an excellent choice for modern urban environments.
Constructed with a high-strength die-cast aluminum housing, the AW09 provides excellent heat dissipation, corrosion resistance, and long-term durability. The optimized optical system delivers uniform illumination while reducing glare, improving visual comfort for pedestrians and drivers.
Available in power options from 20W to 100W, the AW09 can accommodate a wide range of lighting applications and mounting heights. Its modular design simplifies installation and maintenance while helping reduce operating costs throughout the product lifecycle.
Specification:
| Item | Specification |
|---|---|
| Model | AW09 |
| Product Type | LED Post Top Light |
| Dimensions | Ø482 × H471 mm |
| Power | 20W / 30W / 40W / 50W / 60W / 80W / 100W |
| Light Source | High Efficiency LED |
| Luminous Efficiency | 160 lm/W (Optional) |
| Input Voltage | AC100-277V / AC220-240V |
| Frequency | 50/60Hz |
| Color Temperature | 3000K / 4000K / 5000K / 5700K |
| Color Rendering Index | CRI >70 (CRI80 Optional) |
| Power Factor | >0.95 |
| Protection Rating | IP66 |
| Impact Resistance | IK10 |
| Housing Material | ADC12 Die-Cast Aluminum |
| Surface Finish | Outdoor Powder Coating |
| Diffuser | UV-Resistant PC or Tempered Glass |
| Installation | Side Entry |
| Pole Diameter | Ø60mm / Ø76mm (Optional) |
| Operating Temperature | -30°C to +50°C |
| Lifetime | ≥50,000 Hours |
| Warranty | 5 Years |
The elegant circular appearance complements modern architecture and urban landscapes, making it suitable for parks, pedestrian streets, residential developments, commercial districts, and public spaces.
Equipped with high-performance LED technology, the AW09 significantly reduces energy consumption while delivering stable and reliable illumination, helping lower electricity and maintenance costs.
The optimized optical design provides uniform light distribution with minimal glare, improving visibility and creating a safer, more comfortable nighttime environment.
Manufactured with premium die-cast aluminum and finished with weather-resistant powder coating, the AW09 withstands rain, humidity, UV exposure, and harsh outdoor conditions for long-term reliability.
The AW09 can be equipped with various smart lighting solutions, including:
| Road Width | Recommended Power |
|---|---|
| 2–4 m Walkways | 20W–30W |
| 4–6 m Garden Paths | 30W–40W |
| 6–8 m Residential Roads | 50W–60W |
| 8–10 m Urban Streets | 60W–80W |
| Over 10 m Public Squares | 80W–100W |
| Pole Height | Recommended Power |
|---|---|
| 3 m | 20W–30W |
| 4 m | 30W–40W |
| 5 m | 50W–60W |
| 6 m | 60W–80W |
| 7–8 m | 80W–100W |
| Color Temperature | Recommended Application |
|---|---|
| 3000K | Parks, Residential Areas, Hotels, Landscape Lighting |
| 4000K | Municipal Roads, Campuses, Commercial Streets |
| 5000K | Parking Lots, Industrial Parks, Public Areas |
Application:
![]()
A:
The AW09 LED Post Top Light is designed for a wide range of outdoor lighting applications, including municipal roads, residential communities, public parks, pedestrian walkways, commercial plazas, campuses, parking areas, and landscape lighting projects. Its modern design and multiple wattage options make it suitable for both functional and decorative outdoor lighting.
A:
The appropriate wattage depends on the installation height, road width, and required illumination level. Generally, 20W–40W is recommended for walkways and landscape areas, 50W–60W for residential streets and parks, and 80W–100W for wider roads, public squares, and commercial areas. Our engineering team can also provide professional lighting layout recommendations based on your project requirements.
A:
Yes. The AW09 can be customized to meet various project specifications. Optional configurations include different color temperatures (3000K, 4000K, and 5000K), beam distributions, dimmable drivers, photocells, motion sensors, surge protection devices (SPD), NEMA or Zhaga sockets, and custom powder coating colors. OEM and ODM services are also available for branding and project-specific requirements.
