Product Details
Place of Origin: Made in China
Brand Name: A-wei lighting
Certification: CE, RoHS, ETL, DCL，SAA
Model Number: AW-EPHB
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: 1pcs/carton
Delivery Time: 7-20 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB Shanghai, Western Union, L/C
Supply Ability: 8000PCS/Month.
Name: |
Explosion Proof Led Flood Light |
Material: |
Die-casting Aluminum |
Power: |
60W-120W |
Working Life: |
>100000hrs |
Color Temperature(cct): |
5400K-6000K |
Input Voltage(v): |
AC85-260V |
Protection: |
IP65 |
Application: |
Chemical Plants |
Name: |
Explosion Proof Led Flood Light |
Material: |
Die-casting Aluminum |
Power: |
60W-120W |
Working Life: |
>100000hrs |
Color Temperature(cct): |
5400K-6000K |
Input Voltage(v): |
AC85-260V |
Protection: |
IP65 |
Application: |
Chemical Plants |

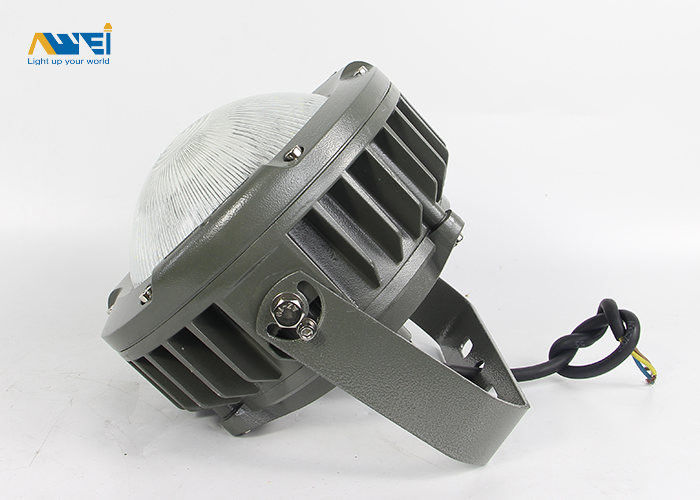

85-265V 100 Watt Explosion Proof Led Lights Protection level IP66 Rated For Hazardous / Wet Locations
Description:
Rated voltage: AC220V 50/60Hz
Protection level: IP66
Anti-corrosion grade: WF1 "WF2
Installation method: X: ceiling type, b: wall type, g: boom type, f: flange type, h: guardrail type
LED light source: 60W-120W
Lamp weight: 5.4kg
Applications:
Specifications:
| ITEM | symbol | Description | UNIT | |
| Rated Voltage | VOLT | AC220 | V | |
| Power | P | 40-80 | W | |
| Protection Level | IP | IP66 | IP | |
| Lighting Angle | θ | 120 | ° | |
| LED Qty | / | 60 | 80 | PCS |
| base specifications | / | CREE3030 | ||
| Anticorrosion grade | / | WF2 | ||
| Explosion proof grade | / | Ex d IIC T6 | ||
| Light efficiency | η | 120 | Lm/W | |
| Frequency | f | 50/60 | Hz | |
| Power Factor | PF | ＞0.95 | PF | |
| Operating Temperature | TOPR | -30~50 | ℃ | |
| Storage Temperature | TOPR | -30~50 | ℃ | |
| Light Source | / | led | PCS | |
| Correlate Color Temperature | Tc | 3000-6500 | K | |
| Color Rendering Index | CRI | ≥70 | RA | |
| LED'S Operating Life | LIFE | 100000 | Hours | |
| Start-up time | T | ≤0.2 | S | |
| Executive standard | / | GB3836.1,GB3836.2 | ||
| Weight | / | 3.9 | KG | |
| Size | / | Φ225×189 | mm | |
Packaging logistics
|
Name |
Description |
(pcs) Quantity |
Name |
Parameter |
| Outer box | 46.5*27*53CM | 1 | N.W. | 4*3.9kg |
| Foam | 25.5*22.3*6.6CM | 8 | G.W. | 16.5kg |
| Packaging method | 4pcs/ctn | |||
Competitive Advantage:
Product pictures:
